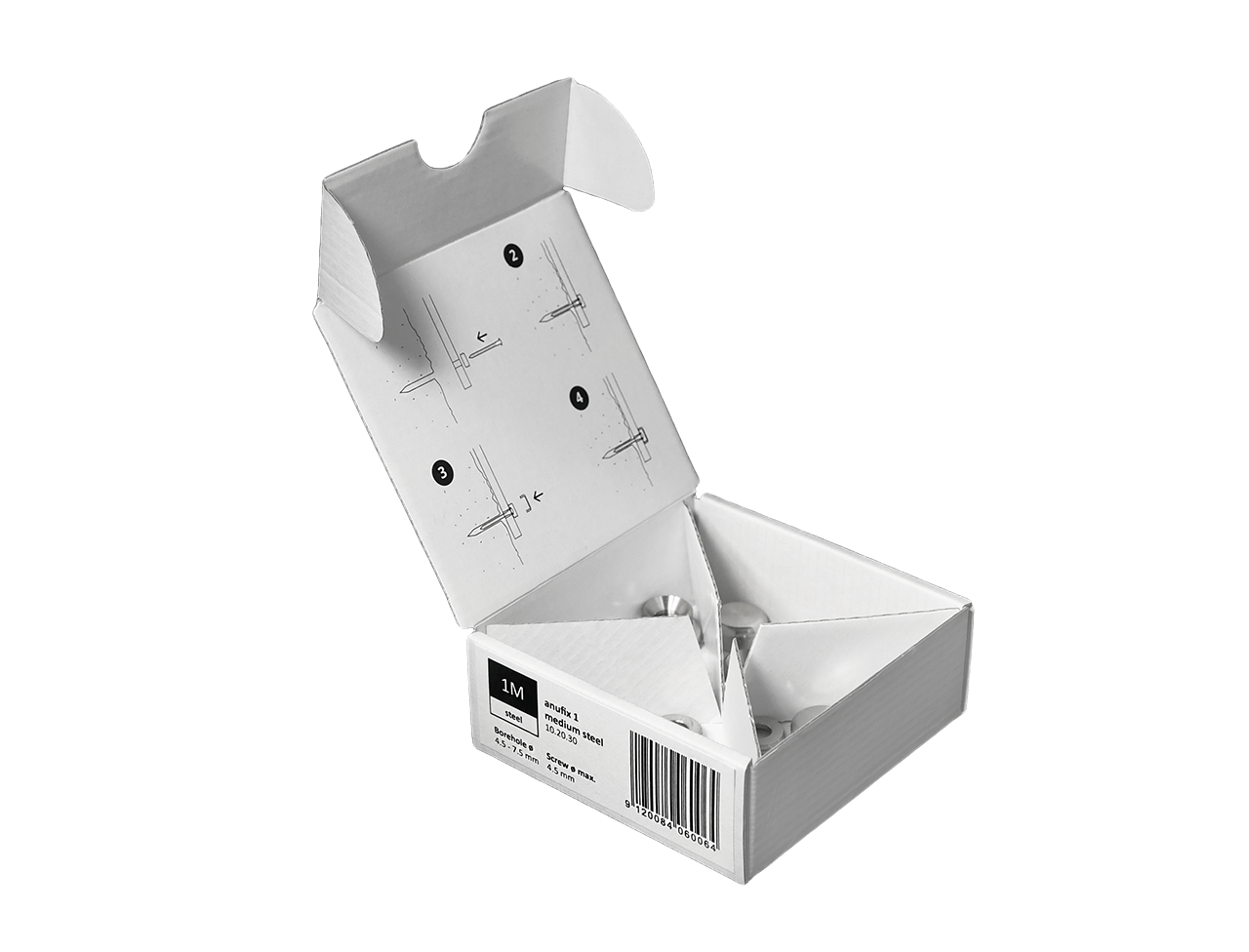

anufix 1 medium steel
Product number:
10.20.30
| Quantity | Unit price | PU ** | Price / PU |
|---|---|---|---|
| To 39 Pcs. | €1.59* | 4 Pcs. |
€6.36*
|
| From 40 Pcs. | €1.54* | 4 Pcs. |
€6.16*
|
| From 80 Pcs. | €1.49* | 4 Pcs. |
€5.96*
|
| From 160 Pcs. | €1.44* | 4 Pcs. |
€5.76*
|
Available, delivery time: 1-3 days
** PU = Packaging Unit
Product information "anufix 1 medium steel"
anufix 1 consists of a threaded ring and a cover cap, which hides the screw head. That’s all. Simple and elegant.
| Borehole ø min/max: D | 4,5 - 7,5 mm |
|---|---|
| Material: | Edelstahl |
| Size: | medium |
| Sign thickness: A | - |
| Head ø: B | 14 mm |
| Wall distance: C | - |
| Screw ø max: | 4,5 mm |
Mounting instructions anufix 1
1
Hold the threaded ring in front of the shield's drill hole and insert the screw
Hold the threaded ring in front of the shield's drill hole and insert the screw 2
Tighten screw - the sign is now firmly fixed in the wall
Tighten screw - the sign is now firmly fixed in the wall 3
Screw head part onto threaded ring (left-hand thread)
Screw head part onto threaded ring (left-hand thread) 4
It's done!
It's done!
