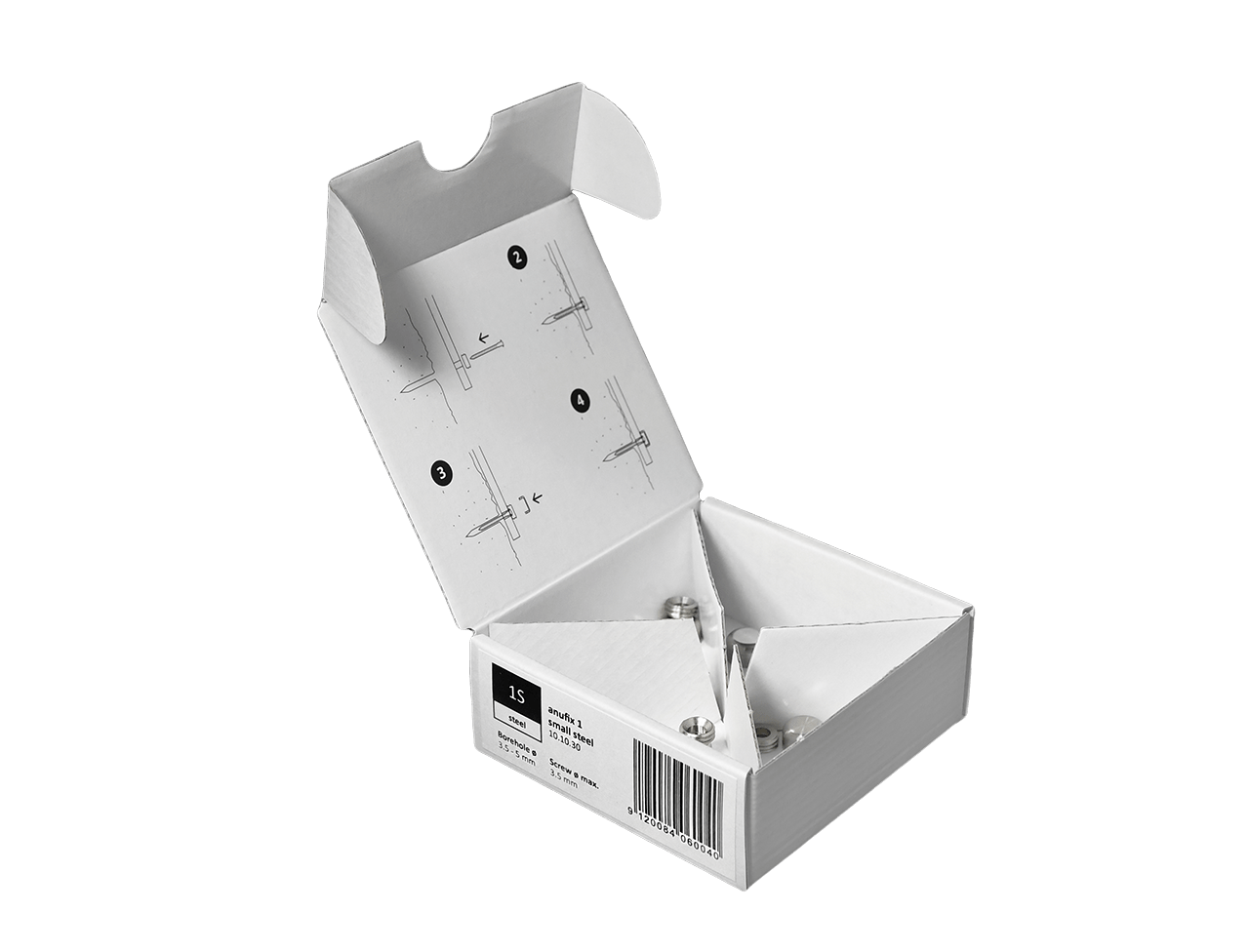

anufix 1 small steel
Product number:
10.10.30
| Quantity | Unit price | PU ** | Price / PU |
|---|---|---|---|
| To 39 Pcs. | €1.49* | 4 Pcs. |
€5.96*
|
| From 40 Pcs. | €1.44* | 4 Pcs. |
€5.76*
|
| From 80 Pcs. | €1.39* | 4 Pcs. |
€5.56*
|
| From 160 Pcs. | €1.34* | 4 Pcs. |
€5.36*
|
Available, delivery time: 1-3 days
** PU = Packaging Unit
Product information "anufix 1 small steel"
anufix 1 consists of a threaded ring and a cover cap, which hides the screw head. That’s all. Simple and elegant.
| Borehole ø min/max: D | 3,5 - 5 mm |
|---|---|
| Material: | Edelstahl |
| Size: | small |
| Sign thickness: A | - |
| Head ø: B | 10 mm |
| Wall distance: C | - |
| Screw ø max: | 3,5 mm |
Mounting instructions anufix 1
1
Hold the threaded ring in front of the shield's drill hole and insert the screw
Hold the threaded ring in front of the shield's drill hole and insert the screw 2
Tighten screw - the sign is now firmly fixed in the wall
Tighten screw - the sign is now firmly fixed in the wall 3
Screw head part onto threaded ring (left-hand thread)
Screw head part onto threaded ring (left-hand thread) 4
It's done!
It's done!
