anufix 3 large chrome
Product number:
30.30.10
| Quantity | Unit price | PU ** | Price / PU |
|---|---|---|---|
| To 39 Pcs. | €4.09* | 4 Pcs. |
€16.36*
|
| From 40 Pcs. | €3.89* | 4 Pcs. |
€15.56*
|
| From 80 Pcs. | €3.69* | 4 Pcs. |
€14.76*
|
| From 160 Pcs. | €3.49* | 4 Pcs. |
€13.96*
|
Available, delivery time: 1-3 days
** PU = Packaging Unit
Product information "anufix 3 large chrome"

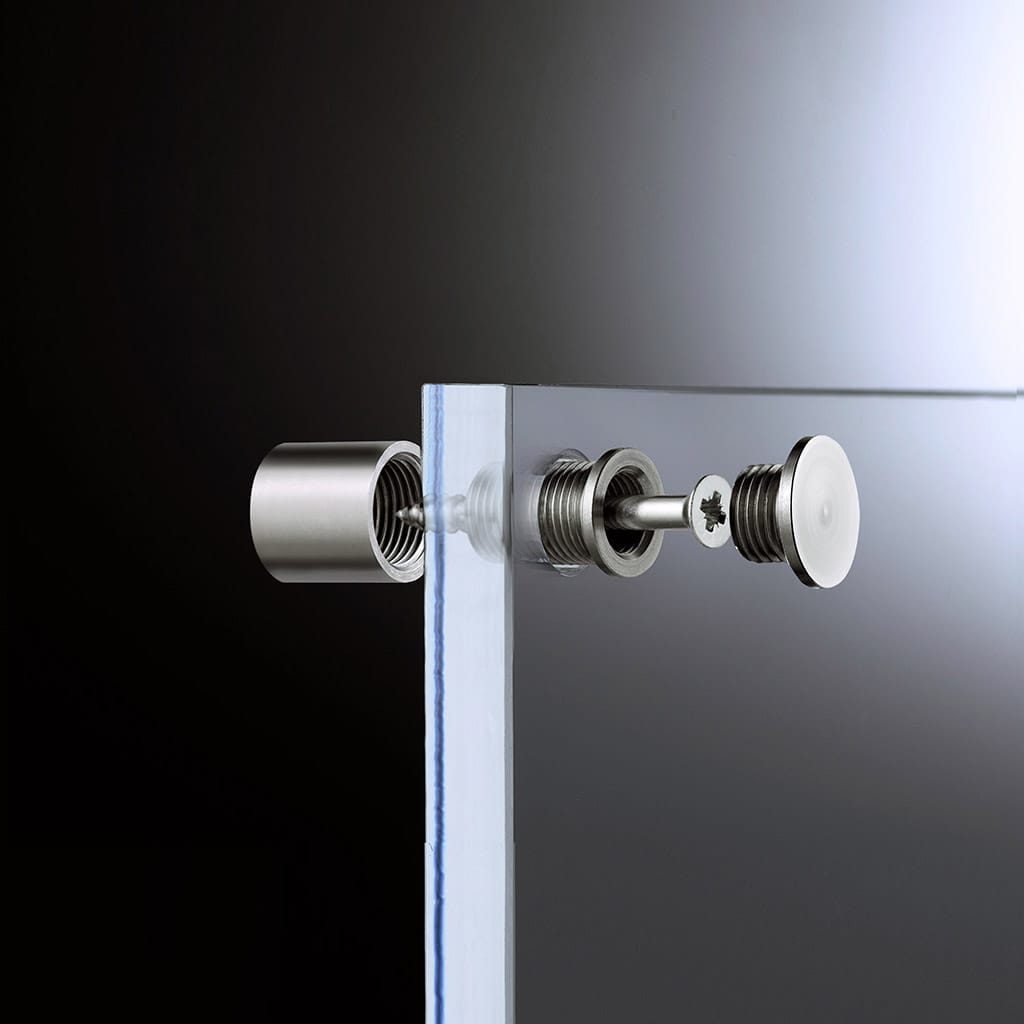

The screw covers of the anufix 3 fixings are even flatter than the anufix 2 ones, however as anufix 3 consists of 3 pieces as well, the assembly is exactly identical.
| Borehole ø min/max: D | 12 - 13 mm |
|---|---|
| Material: | Messing verchromt |
| Size: | large |
| Sign thickness: A | 1 - 15 mm |
| Head ø: B | 15 mm |
| Wall distance: C | 15 mm |
| Screw ø max: | 4,5 mm |
Mounting instructions anufix 3
1

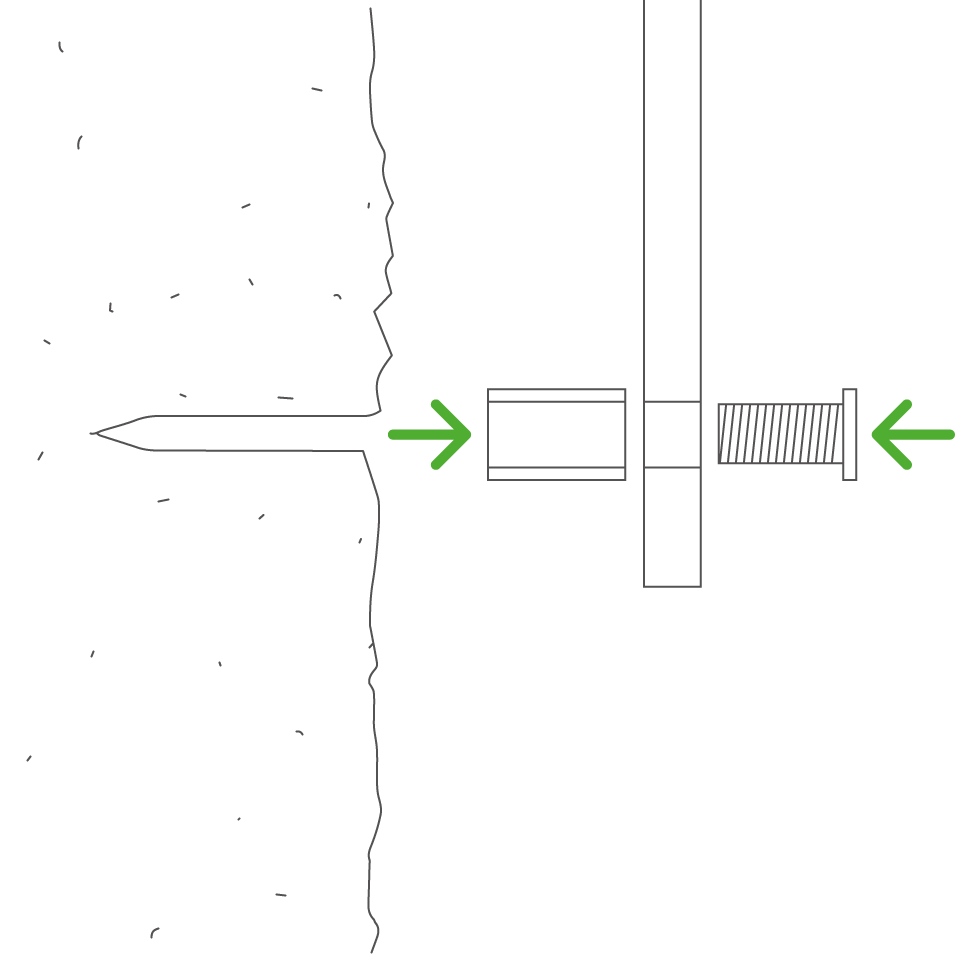

Screw together body + spacer + sign = right angle between sign & spacer
Screw together body + spacer + sign = right angle between sign & spacer 2

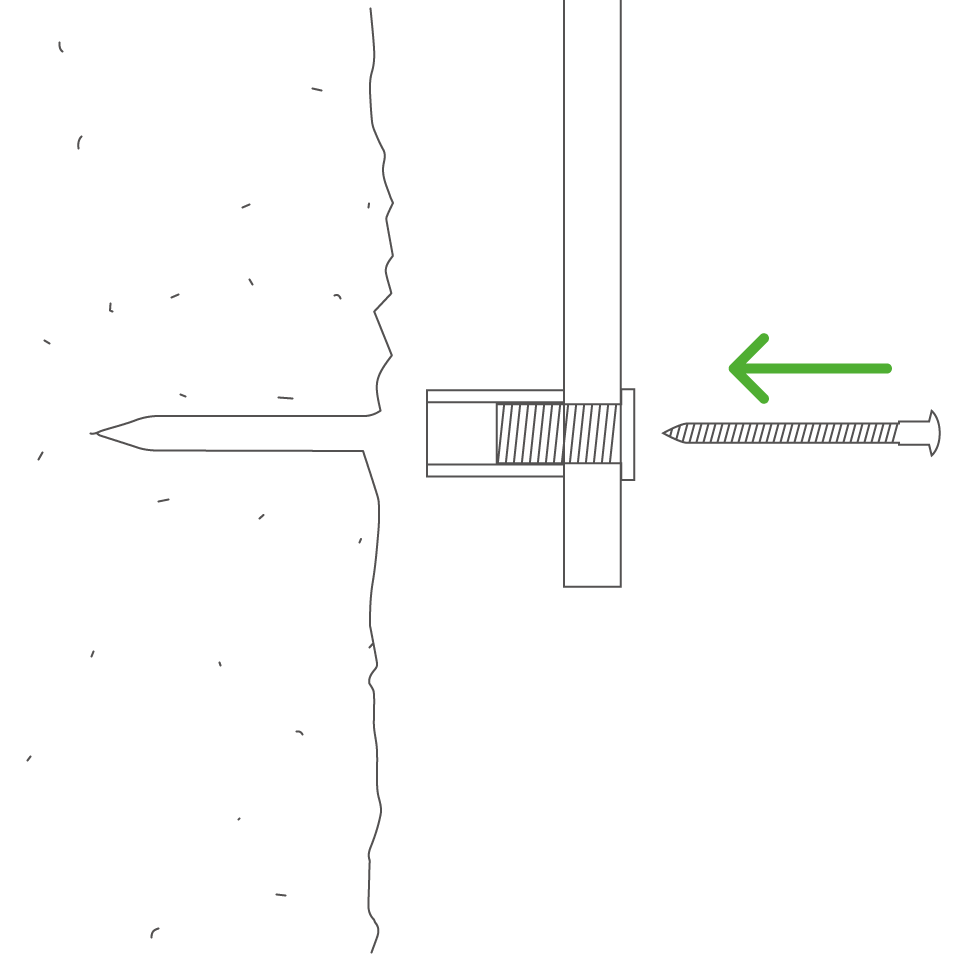

Screw the pre-assembled sign in the wall
Screw the pre-assembled sign in the wall 3
Always right angle between spacer and wall thanks to pre-assembly
Always right angle between spacer and wall thanks to pre-assembly 4
Perfect mounting at right angles
Perfect mounting at right angles
Mounting pictures
1

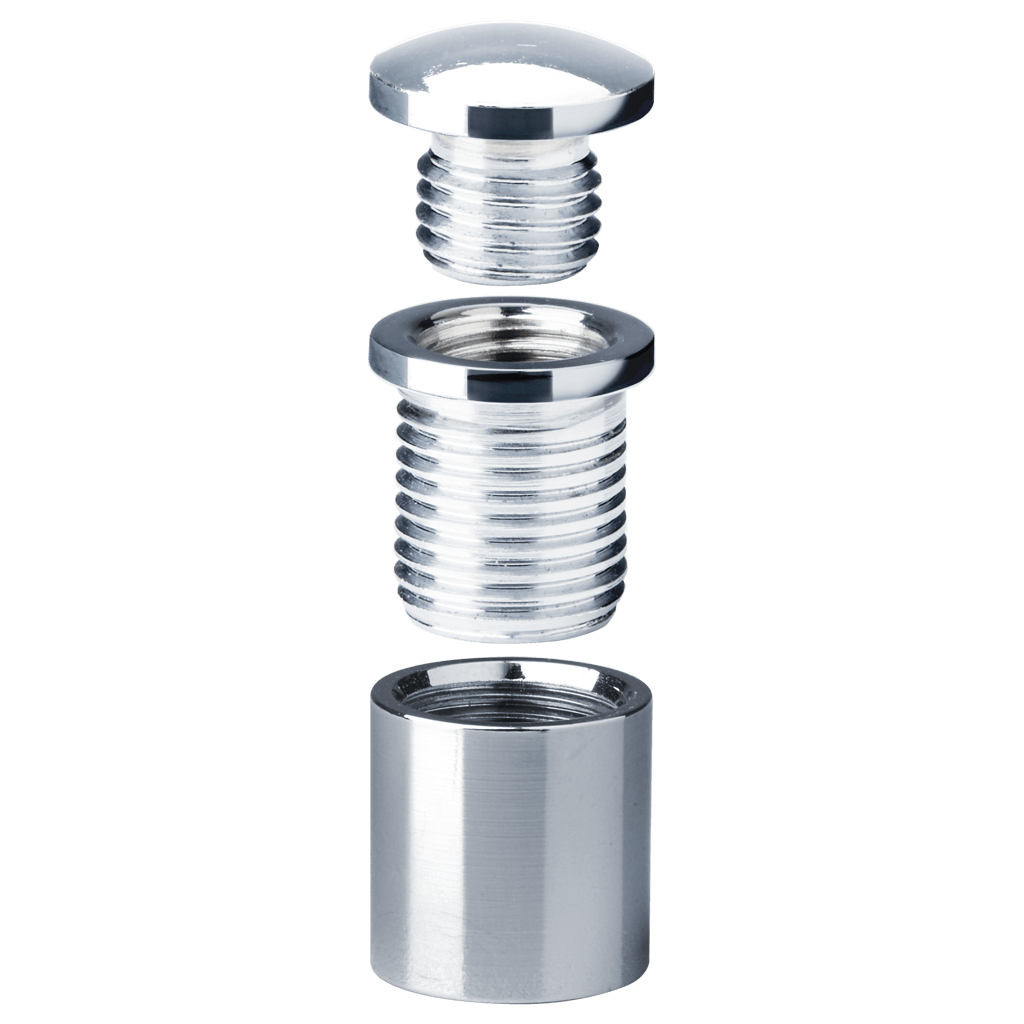

anufix standoffs consist of 3 pieces: head, body and spacer.
anufix standoffs consist of 3 pieces: head, body and spacer. 2
Screw together body and spacer before mounting the sign to the wall.
Screw together body and spacer before mounting the sign to the wall. 3
Hold the pre-assembled sign against the wall and mark the bore holes.
Hold the pre-assembled sign against the wall and mark the bore holes. 4
Mount the sign with the standoffs to the wall.
Mount the sign with the standoffs to the wall. 5
Screw in the head with left-hand thread (vandalism protection).
Screw in the head with left-hand thread (vandalism protection). 6

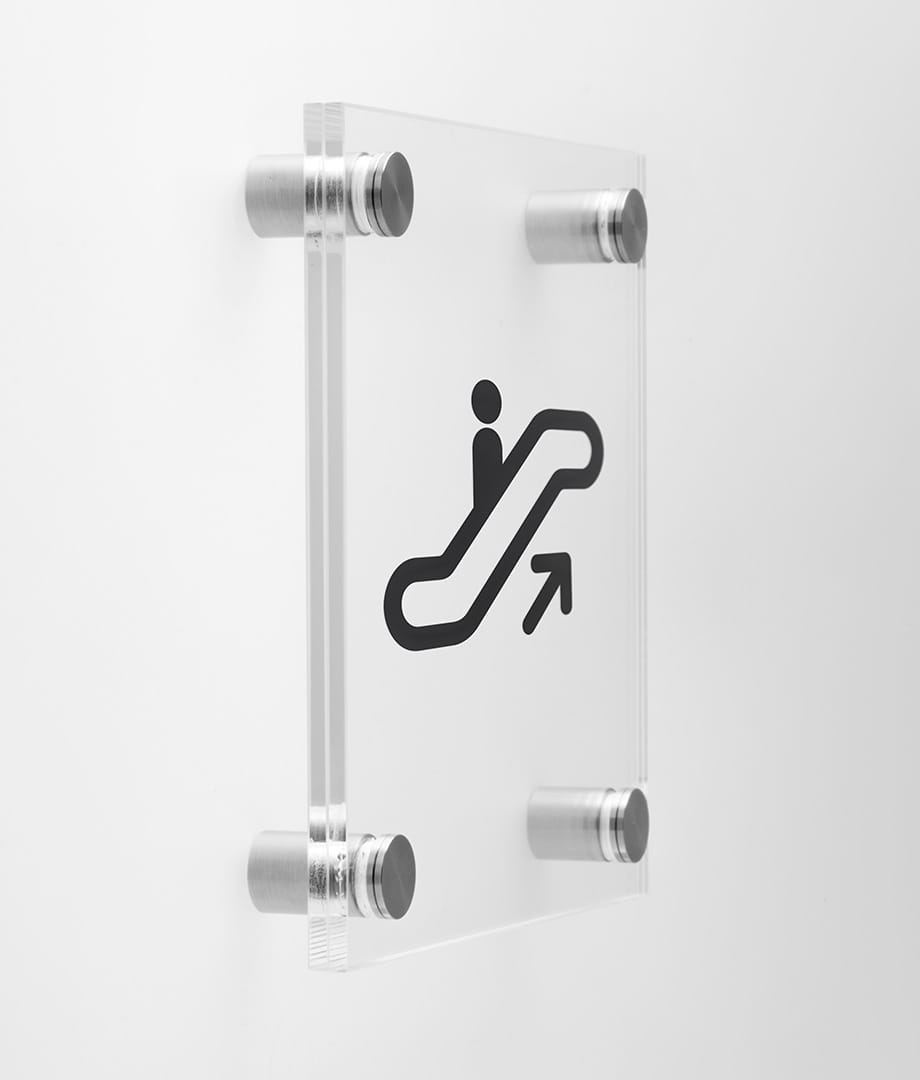

The elegant appearance of the anufix standoffs add an air of elegance to any sign.
The elegant appearance of the anufix standoffs add an air of elegance to any sign.
