anufix 3 large steel (set of 40)
Product number:
30.30.30.40
Quantity | Price / PU |
---|---|
To 1 Pcs. |
€79.60*
|
From 2 Pcs. |
€75.60*
|
From 4 Pcs. |
€71.60*
|
Available, delivery time: 1-3 days
Product information "anufix 3 large steel (set of 40)"
The screw covers of the anufix 3 fixings are even flatter than the anufix 2 ones, however as anufix 3 consists of 3 pieces as well, the assembly is exactly identical.
Borehole ø min/max: D | 12 - 13 mm |
---|---|
Material: | Edelstahl |
Size: | large |
Sign thickness: A | 1 - 15 mm |
Head ø: B | 15 mm |
Wall distance: C | 15 mm |
Screw ø max: | 4,5 mm |

Mounting instructions anufix 3
1
Screw together body + spacer + sign = right angle between sign & spacer

2
Screw the pre-assembled sign in the wall

3
Always right angle between spacer and wall thanks to pre-assembly

4
Perfect mounting at right angles

Mounting pictures
1

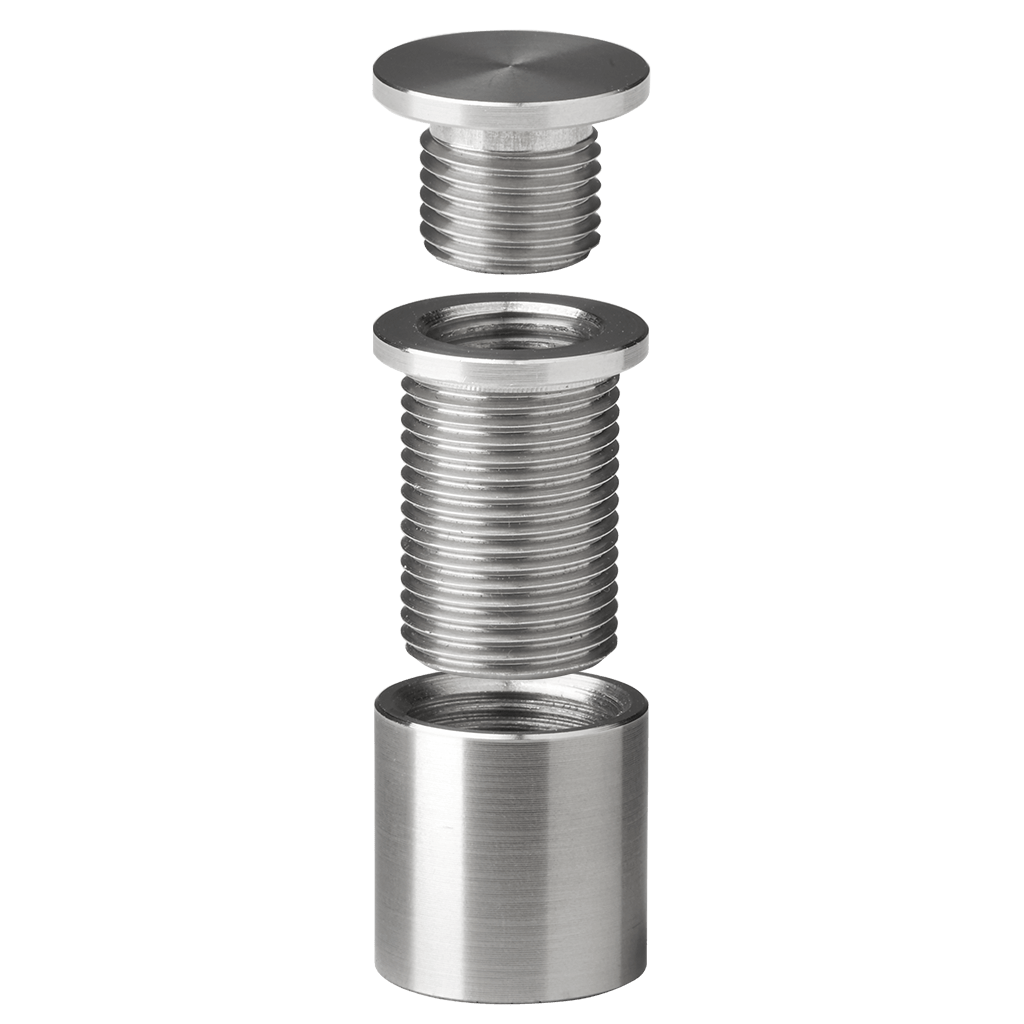

anufix standoffs consist of 3 pieces: head, body and spacer.

2
Screw together body and spacer before mounting the sign to the wall.

3
Hold the pre-assembled sign against the wall and mark the bore holes.

4
Mount the sign with the standoffs to the wall.

5
Screw in the head with left-hand thread (vandalism protection).

6
The elegant appearance of the anufix standoffs add an air of elegance to any sign.
