anufix 3 standoffs
Looks elegant – it is elegant.
The screw covers of the anufix 3 fixings are even flatter than the anufix 2 ones, however as anufix 3 consists of 3 pieces as well, the assembly is exactly identical.
anufix 3 product variants
anufix 3 is available in 2 material variants and 2 sizes. There are no minimum order quantities and no minimum quantity surcharge. Since signs are usually attached with 4 standoffs, this is our packaging size. You can order anufix 1 in units of 4.

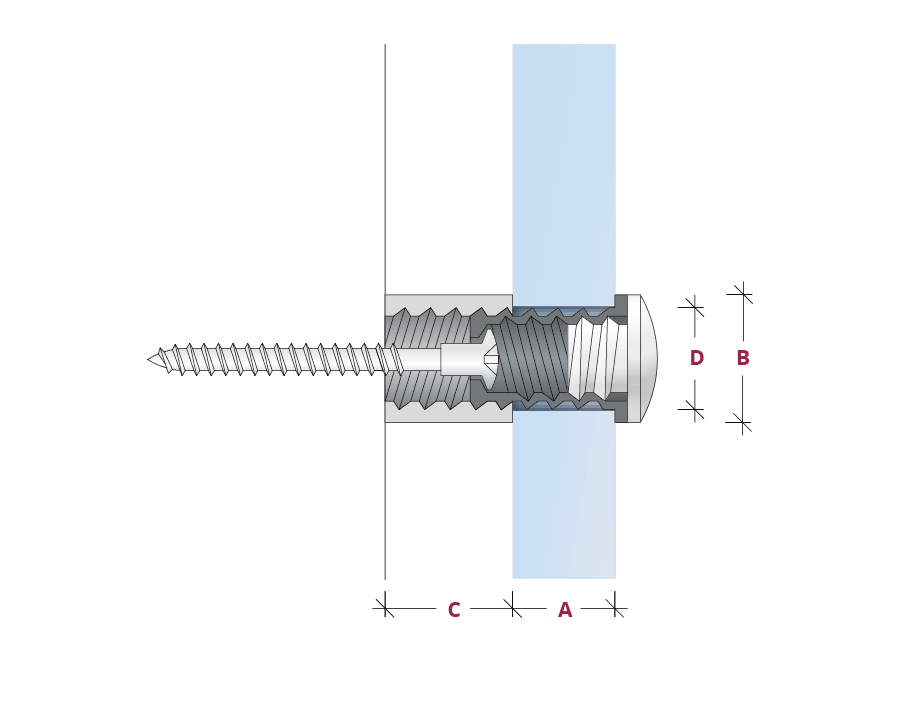

| Size | Model | Sign thickness A |
Head ø B |
Wall distance C |
Borehole ø min/max D |
Screw ø max | Price from |
|
| medium |
|

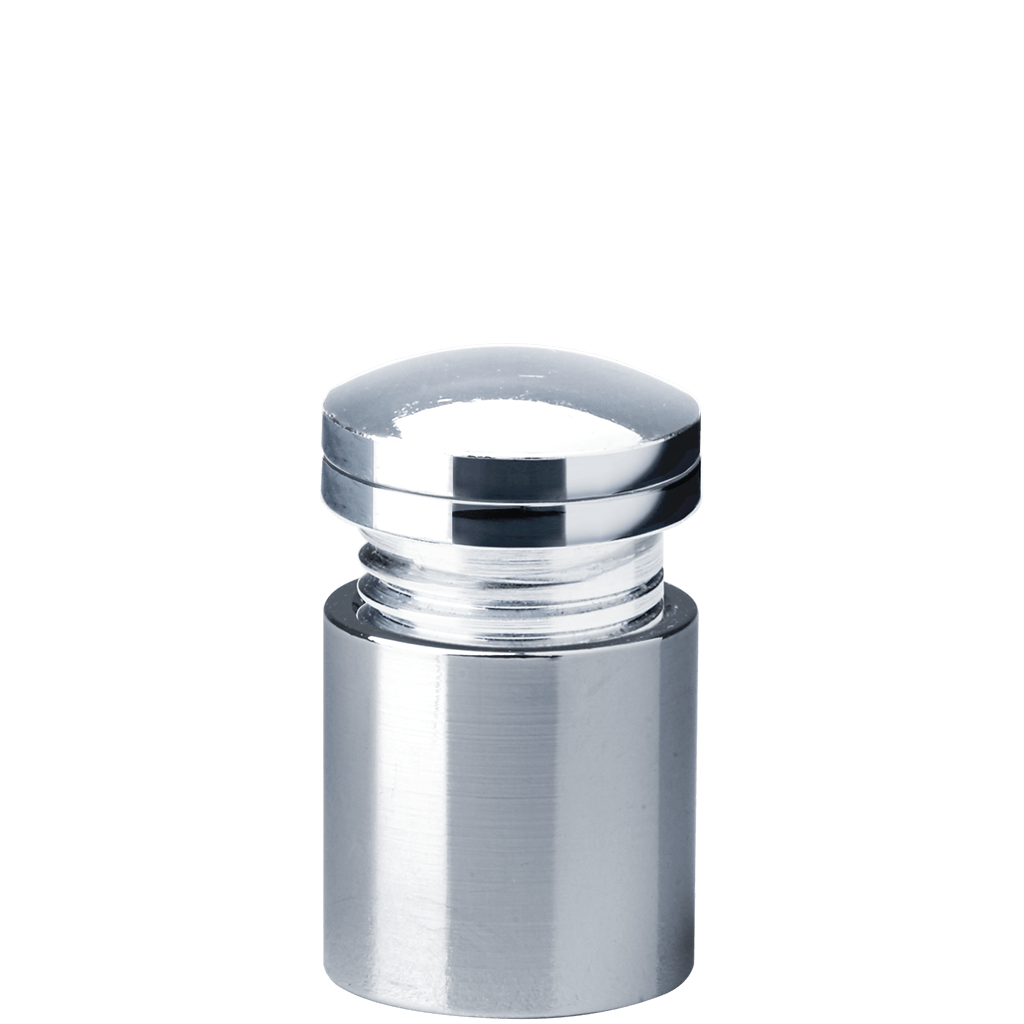

anufix 3 medium chrome Messing verchromt Product number: 30.20.10 Details |
1 - 8 mm | 12 mm | 10 mm | 10 - 11 mm | 3,5 mm | €3.09 |
| medium |
|

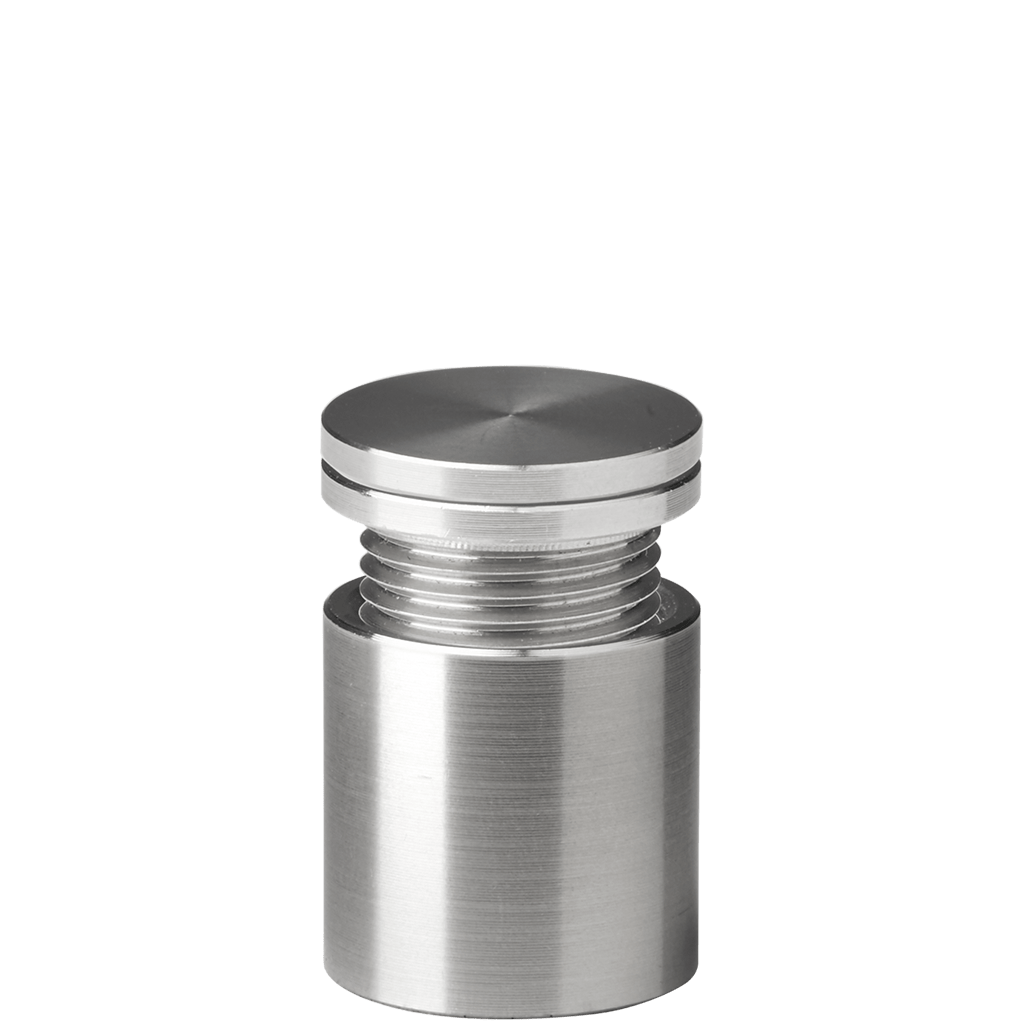

anufix 3 medium steel Edelstahl Product number: 30.20.30 Details |
1 - 8 mm | 12 mm | 10 mm | 10 - 11 mm | 3,5 mm | €1.69 |
| large |
|

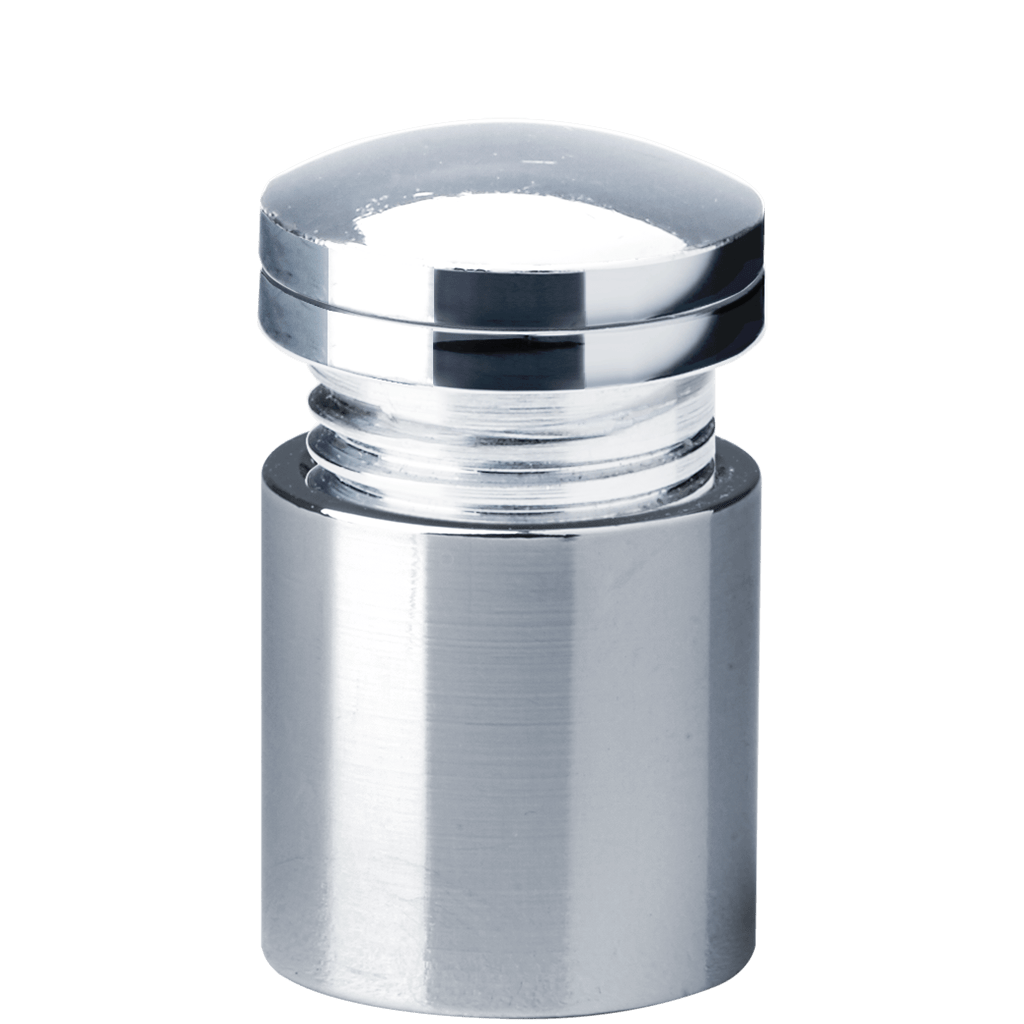

anufix 3 large chrome Messing verchromt Product number: 30.30.10 Details |
1 - 15 mm | 15 mm | 15 mm | 12 - 13 mm | 4,5 mm | €3.49 |
| large |
|

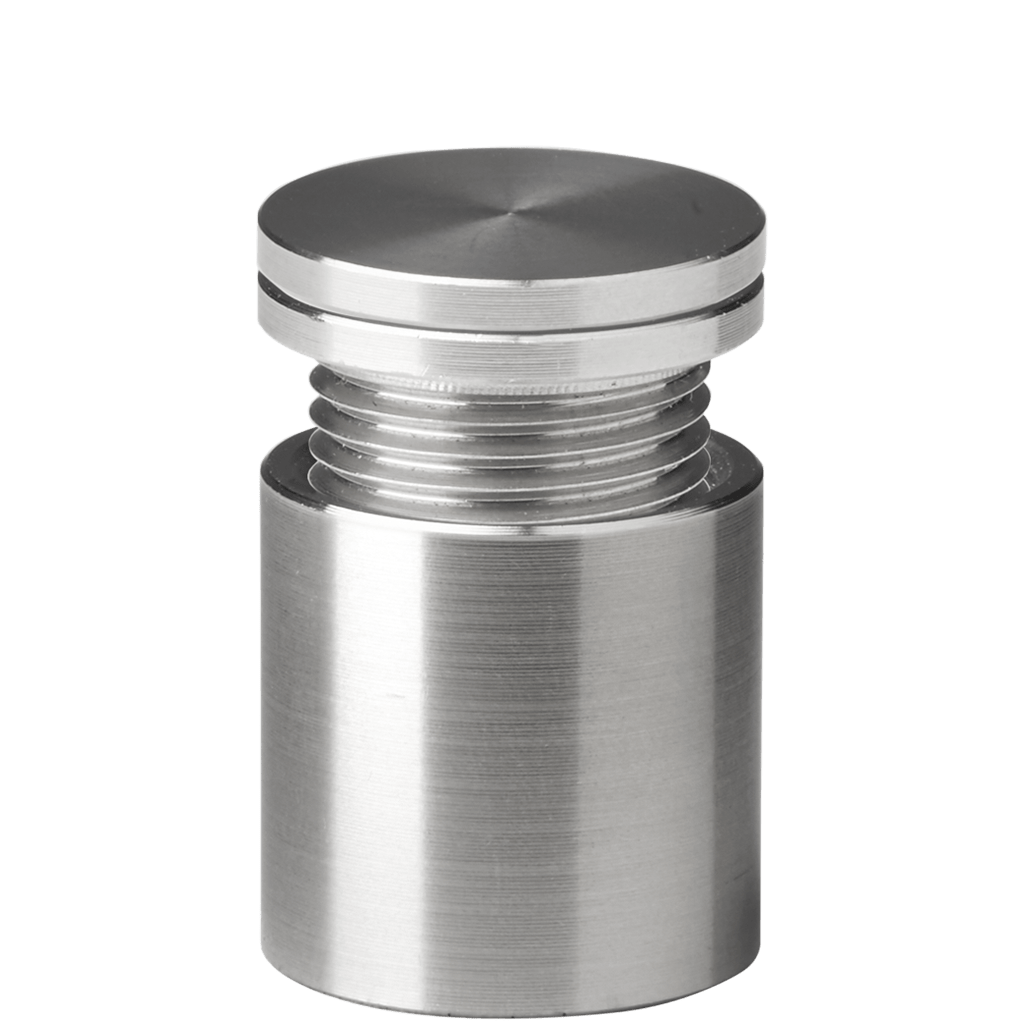

anufix 3 large steel Edelstahl Product number: 30.30.30 Details |
1 - 15 mm | 15 mm | 15 mm | 12 - 13 mm | 4,5 mm | €1.79 |
| large |
|

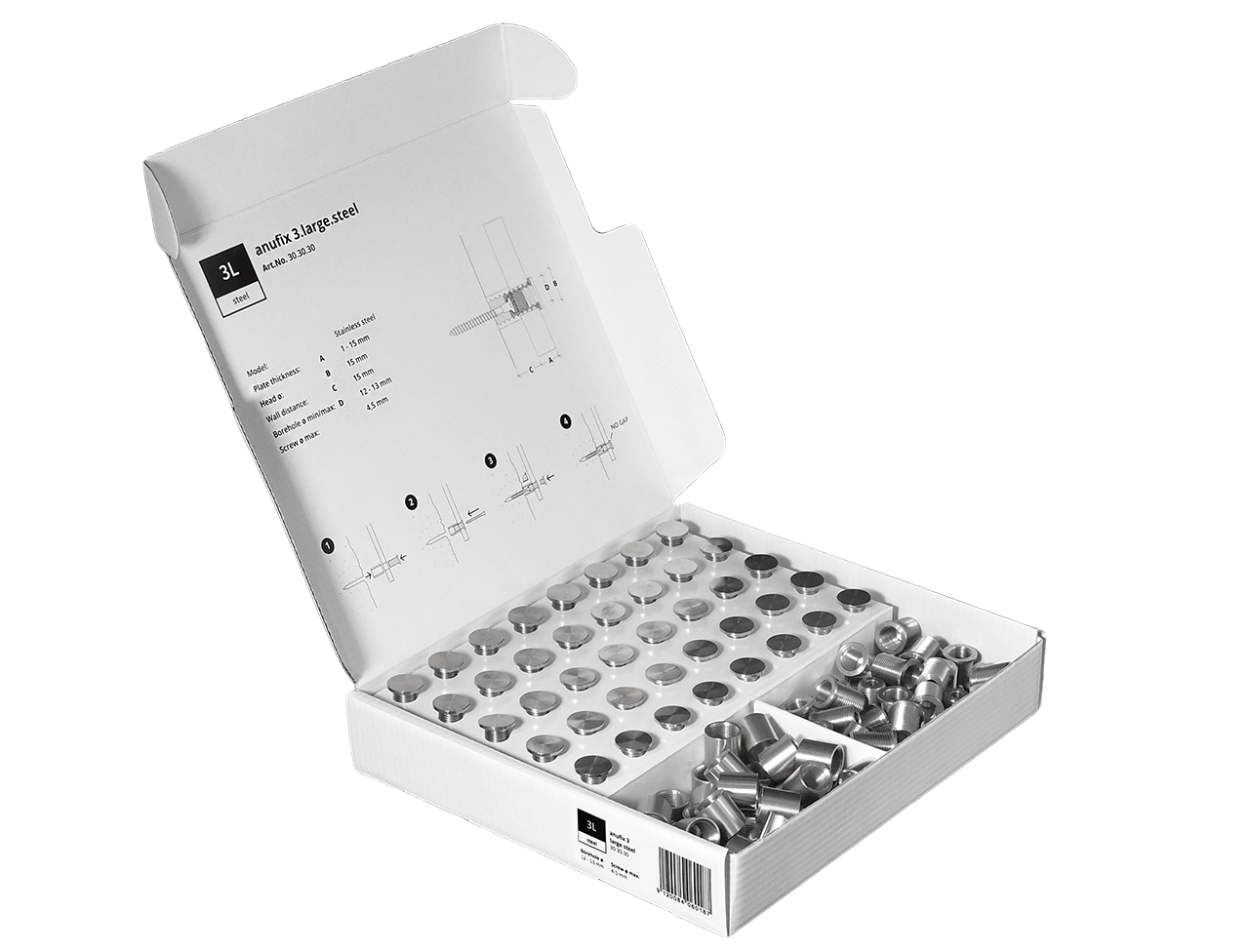

anufix 3 large steel (set of 40) Edelstahl Product number: 30.30.30.40 Details |
1 - 15 mm | 15 mm | 15 mm | 12 - 13 mm | 4,5 mm | €71.60 |
